LR-Q011 Load-Displacement Curve Tester Loading Stroke Curve Analysis Testing Machine
1. Product Description
This machine is suitable for load-trave curve testing of various metal spring pieces, keys, switches, computer keyboards, mobile phone keys, etc., and simultaneously completes the downward pressure rebound force test. The machine adopts a Windows XP Chinese and English window program setting, which is easy to operate and automatically stores data. It can obtain the test results of load-travel curve, life attenuation curve. Moreover, the test methods can be saved and called. It uses high-precision load cells for measurement and servo motors for transmission, which can accurately measure the load-travel test results. It is truly an essential testing instrument for R&D and quality inspection of various key manufacturers.
2. Characteristics
PEAK FORCE, RETURNFORCE, DISTANCE and CLICK rate, etc. can all be displayed directly on the graph with their corresponding values, without the need for manual calculation.
1.The measurement curve graph is stored in the computer memory and can be enlarged or reduced at any time. One A4 sheet can be arbitrarily designated to hold N curve graphs.
2.The measurement items can input upper and lower limit specification values, and the measurement results can be automatically judged.
3.The maximum measurement stroke and load can be input, and the computer will automatically control.
4.The test report can be converted into EXCEL or other document report formats.
5.The inspection report can be automatically generated, and there is no need for further input.
6.The header content of the inspection report can be modified at any time.
7.The test conditions are set on the computer screen, which is convenient and fast.
8.The test data is stored on the hard disk (each piece of data can be stored, without any limit on the number of times).
9.The computer directly prints and stores the force-displacement curve graph and inspection report. (No grid paper is needed, a regular A4 sheet is sufficient.)
10.The load unit can be displayed as N, Ib, g, kg, and can be freely switched.
3.Technical Parameters
|
|

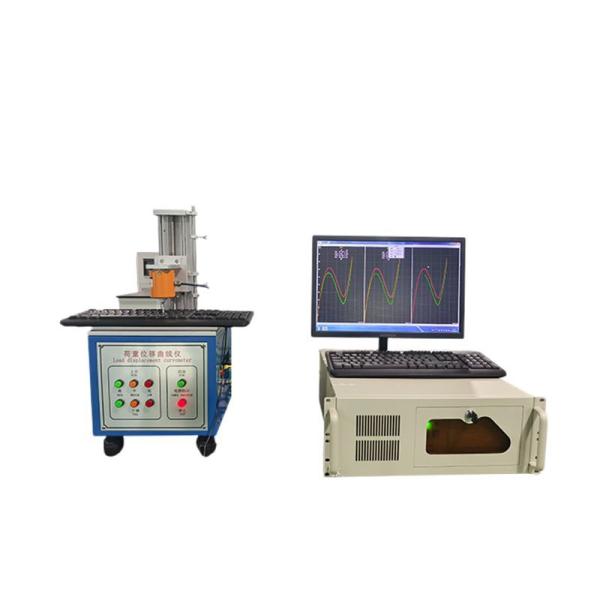

Load-Displacement Curve Tester Loading Stroke Curve Analysis Testing Machine Images
|
